1. Clean and degrease the crankshaft end and mounting holes on the crankcase before starting.

2. Using the Rotax fixation tool (876 640) supplied in the Rotax tool kit lock the engine up by installing the pin into the impulse hole, used to run the fuel pump. With the pin in place rotate the engine, until it locks.

3. Install flywheel onto crankshaft end. Install flat washer onto bolt install bolt.. Torque to 45 FOOT lbs.

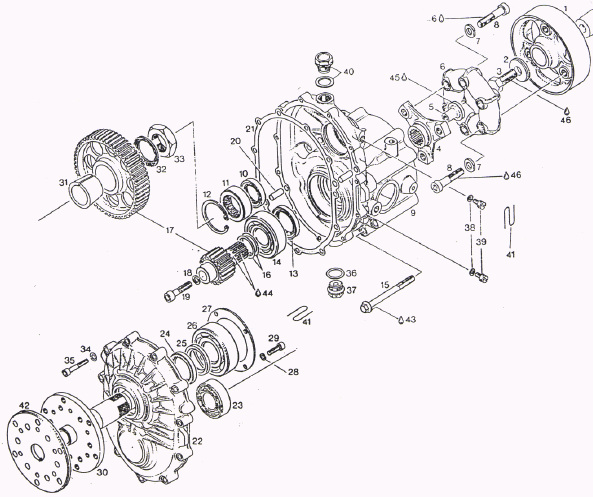

4. Install allen screws with washers into hardee disc (rubber doughnut). Install hardee disk onto crankshaft as shown. Use loctite 242 on bolt threads. Toque to 30 FOOT lbs. While torquing use a 17 mm wrench to prevent special flat sided washers from turning.

5. If hardee disc is banded remove band..

6. Install back half of gear box housing onto engine with the 8 bolts provided. Apply loctite 242 to bolt threads before installing. Torque to 195 INCH lbs.

7. Install #16 shims onto the pinion shaft.

8.Install anti-seize compound onto pinion shaft, and install #4 coupling flange. Torque allen bolt to 195 INCH lbs.

9. Install gasket (#19) - install front gear box housing and prop shaft onto rear housing. Torque all 6 mm fasteners in an X pattern to 95 INCH lbs.

10. Remove fixation tool from impulse hole.

11. Fill gear box with 90 weight oil until oil runs out the lower of the two side plugs (about 4 ounces). 11. Tighten then safety wire top and bottom plugs.

12. Tighten then safety wire vent cap and drain plug.
